Type K 5 Foot Lengths

**Please note when ordering Type K that it is called and ordered by the Nominal I.D.

Please refer to chart below. Example : An order of 1/2" K would yield .625-OD X .049 Wall X Length.

 5 FT SECTIONS FOR GROUND SHIPPING (COST IS PER 5 FT SECTION) ( +/- 10% cutting tolerance ) ,

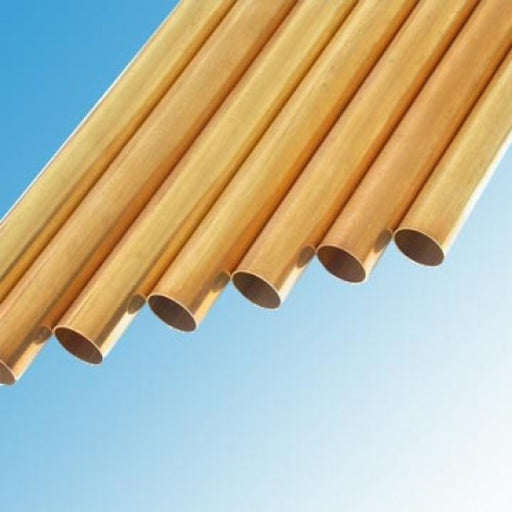

Type K Copper Tubing Coils are manufactured to spec ASTM B88 is the Standard Specification for Seamless Copper Tube , ANSI/NSF Standard 61 Drinking Water System Components.

All of the specifications require a minimum copper plus silver content of 99.9% and phosphorus content between .015 - .040%. As indicated by the
compositional requirements, the copper tube is essentially lead free.

NSF 61 , Alloy C12200

 Called by the NOM ID size Type K copper wall thicknesses are thicker than Type L and M and are used for domestic water-, service and distribution-, fire protection-, solar-, fuel and oil-, HVAC-, compressed air-, oxygen-, LPG gas-, snow melting-, steam- and vacuum-systems. Copper tubes of type K copper tubing are typically used with wrot copper fittings. ASTM specifications are B-88.

* Please note that the straight length hard temper copper tubing listed here is called and ordered by the Nominal , ID size. Please reference this size when ordering any copper fittings or plumbing tools.

PSI of Soldered and Brazed Joints
Standard-Tube-Certificate-of-Conformance
Specifications Chart
Data Sheets-Type K,M,L&ACR
Data Sheets-DWV
Tubing Wall Thickness & Weights
