**Please note when ordering Type L that it is called and ordered by the Nominal I.D. Please refer to chart below. Example : An order of 1/2" L would yield .625-OD X .040 Wall X Length.

5 FT SECTIONS FOR GROUND SHIPPING (COST IS PER 5 FT SECTION) ( +/- 10% cut tolerance )

Type L HARD copper tubing is used for interior above ground plumbing - domestic water-, service and distribution-, fire protection-, solar-, fuel and oil-, HVAC-, compressed air-, LPG gas-, snow melting- and vacuum-systems. Type L copper tubing is typically used with wrot copper fittings. Brass flare fittings are sometimes used but be careful when ordering brass fittings as they are called by the OD and not the NOM sizes. ASTM specifications are B-88.

Manufactured to spec ASTM B88 is the Standard Specification for Seamless Copper Tube , ANSI/NSF Standard 61 Drinking Water System Components.

All of the specifications require a minimum copper plus silver content of 99.9% and phosphorus content between .015 - .040%. As indicated by the
compositional requirements, the copper tube is essentially lead free.

NSF 61 , Alloy C12200

Called by the NOM ID size Type L copper wall thicknesses are thicker than Type M and is used for domestic water-, service and distribution-, fire protection-, solar-, fuel and oil-, HVAC-, compressed air-, oxygen-, LPG gas-, snow melting-, steam- and vacuum-systems. Copper tubes of Type L copper tubing are typically used with wrot copper fittings. ASTM specifications are B-88.

**Please note that the straight length hard temper copper tubing listed here is called and ordered by the Nominal , ID size. Please reference this size when ordering any copper fittings or plumbing tools.**

PSI of Soldered and Brazed Joints
Standard-Tube-Certificate-of-Conformance
Specifications Chart
Data Sheets-Type K,M,L&ACR
Data Sheets-DWV
Tubing Wall Thickness & Weights

Country

Country

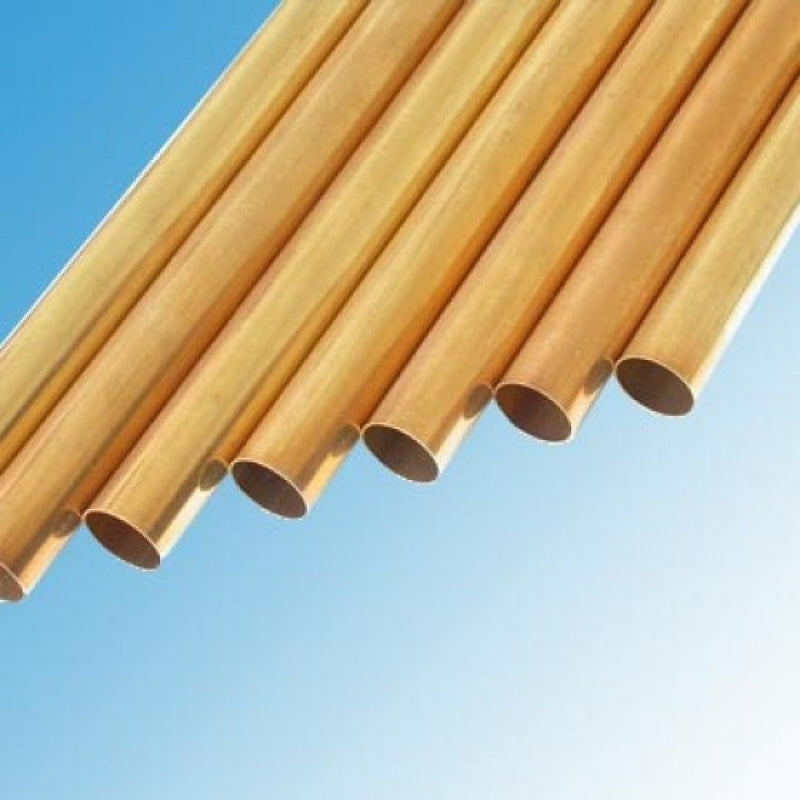

1/2 Type L Hard Copper 5 FT Length
